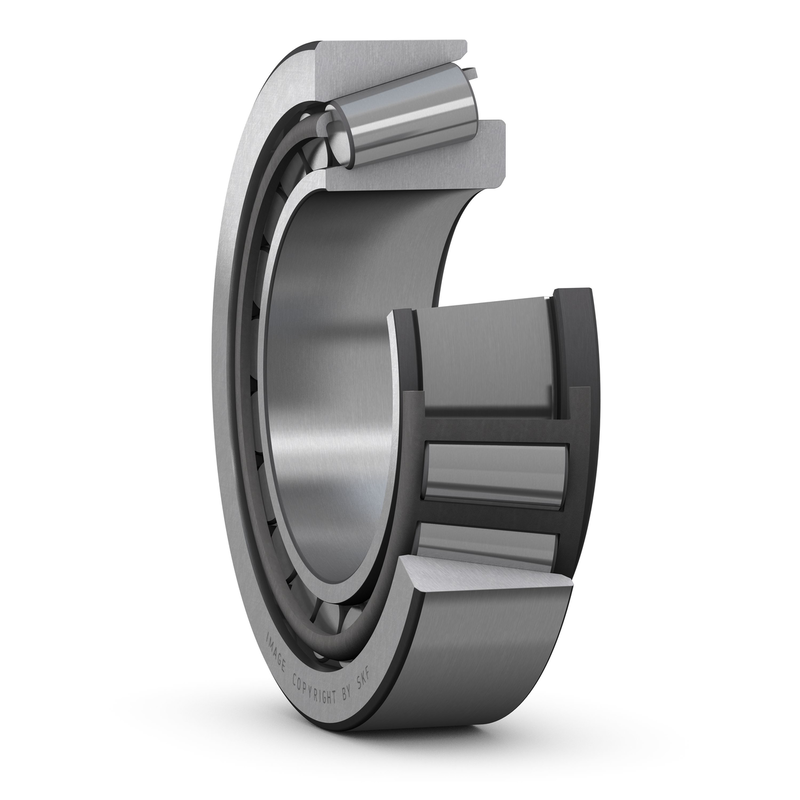

T7FC060T80/DTC15 Paired tapered roller bearings in series arrangement

Position：Model > Tapered Roller Bearings
#
  • #
  • #
  • #
Main Dimensions & Performance Data

Model

 T7FC060T80/DTC15

d

 60 mm

od

 125 mm

T

 80 mm

C

 325 kN

C0

 405 kN

Pu

 49 Pu

reference speed

 3000 r/min

limit speed

 5300 r/min

weight

 4.55 kg

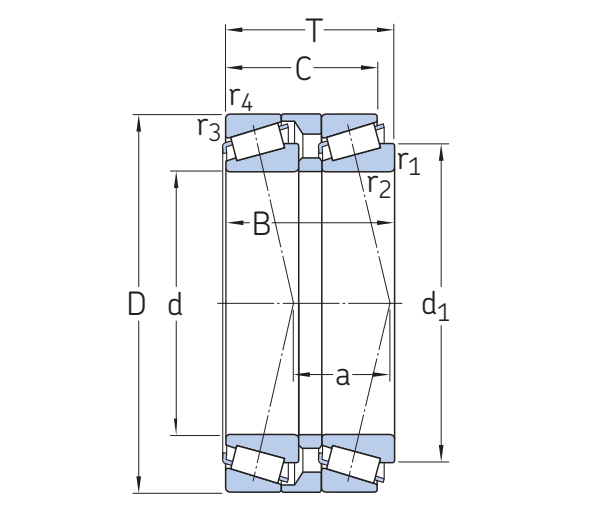

Mounting dimensions

d1

 97.2

B

 76.5

C

 69

r1,2 min

 3

r3,4 min

 3

a

 43

damax

 72

dbmin

 73

Damin

 94

Damax

 113

Dbmin

 119

Camin

 4

Cbmin

 11

ramax

 3

rbmax

 3

e

 0.83

Y

 0.72

Y

 0.4

Previous：T7FC055T73/DTC10

Next：T7FC065T80/DTC15
